Description

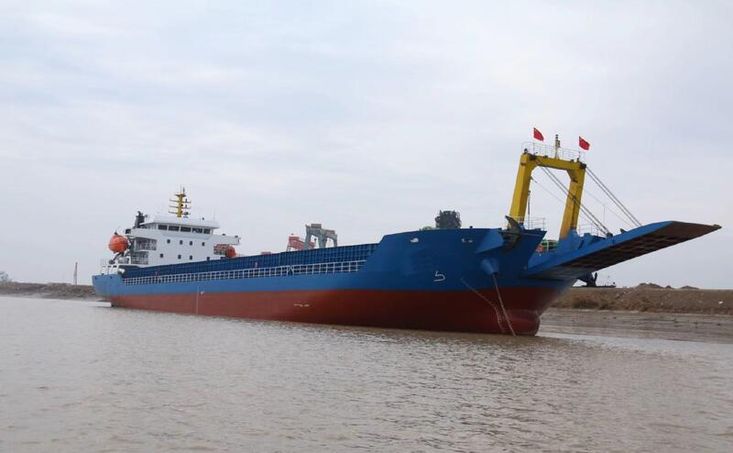

Vessel Type: Self-Propelled LCT / Deck Cargo Vessel. Hull Material: Steel. Class: CCS (Domestic Coastal). Trading Area: Sea / Coastal. Main Engines: 2x CNPC JICHAI diesel engines. Maximum Speed (light condition): approx. 11–12 knots. Fuel Consumption: approx. 3.8 MT/day.
Date Launched: February 2021 Length: 99.78m (327ft 4.35in) Beam: 20.78m (68ft 2.11in) Draft: 4.23m (13f 10.54in) Note: Main Engines: 2 × CNPC JICHAI Location: China

Specifications

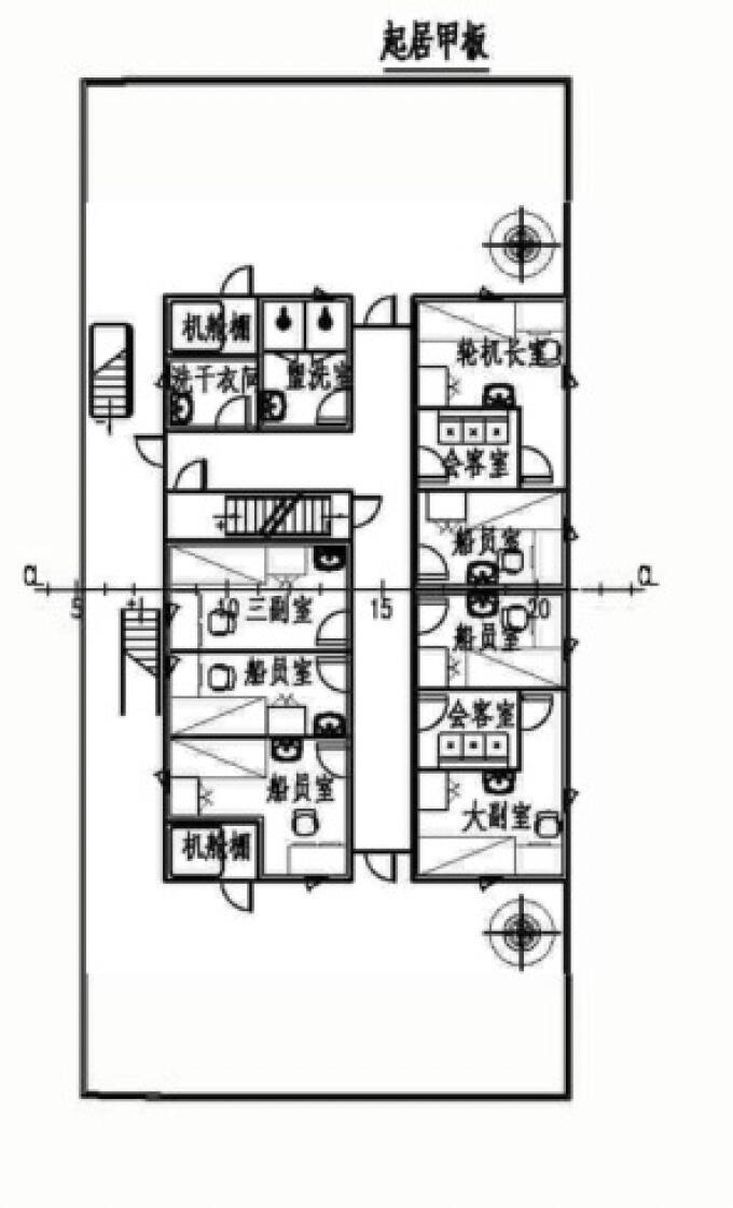

Accommodation

Crew Complement: 12 persons

Construction

Vessel Type: Self-Propelled LCT / Deck Cargo Vessel
Hull No.: CB 96
Year Built: February 2021
Builder: China
Hull Material: Steel
Length Overall (LOA): 99.78 m
Length Waterline (LWL): 97.04 m
Length Between Perpendiculars (LPP): 93.60 m
Beam (Moulded): 20.78 m
Depth (Moulded): 5.65 m
Design Draft: 4.23 m
Light Draft: 3.221 m
Deadweight (DWT): approx. 5,150 MT
Maximum DWT (estimated): up to approx. 6,000 MT (subject to survey)
Gross Tonnage (GT): 2,998
Net Tonnage (NT): 1,678
Loaded Displacement: approx. 6,940 MT
Light Displacement: approx. 1,743 MT

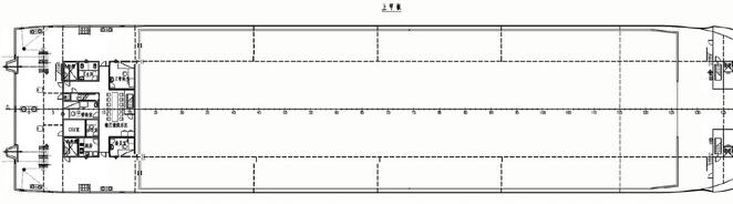

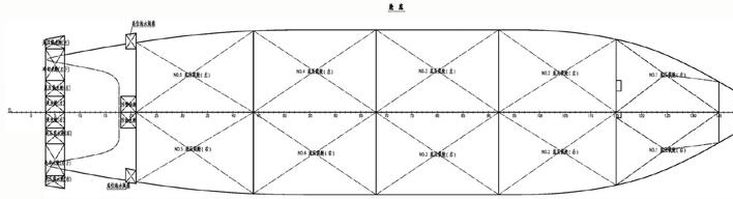

Deck Dimensions: approx. 72.0 m × 20.0 m
Deck Area: approx. 1,440 m²
Deck Strength: 5.0 t/m²
Cargo Type: Deck cargo, project cargo, vehicles, equipment, offshore materials

Modern LCT built 2021
Large, clear deck with high deck loading
Twin-engine, twin-propeller configuration
Suitable for coastal and regional deck cargo operations
Flag and class change possible, subject to buyer’s requirements

Navigation Equipment

Radar
GPS
AIS
Gyro compass
Magnetic compass
Depth sounder
Lifesaving and firefighting equipment in compliance with CCS / China MSA

Engine(s)

Main Engines: 2x CNPC JICHAI diesel engines
Power: 1,500 HP each
Total Power: 3,000 HP
Propulsion: Twin screw, fixed pitch propellers
Service Speed: approx. 8–9 knots
Maximum Speed (light condition): approx. 11–12 knots
Fuel Consumption: approx. 3.8 MT/day

Electrics

Main Generators: 2 × 187 kW @ 1,500 rpm
Harbor / Emergency Generator:
1 × 50 kW

Certification

Class: CCS (Domestic Coastal)
Trading Area: Sea / Coastal
Flag: China (subject to change)

Disclaimer

The particulars and specifications are supplied by the vendor and not SeaBoats. Such information has not been verified and may be incorrect. Please do not rely on particulars and specifications unless you have verified their accuracy.
