Description

Vessel Type: Self-Propelled LCT / Deck Cargo Vessel. Hull Material: Steel. Class: CCS (China Classification Society – Domestic Coastal). Trading Area: Sea / Coastal Flag: China (subject to change). Main Engines: 2 × CNPC JICHAI diesel engines. Maximum Speed (light condition): approx. 11–12 knots. Fuel Consumption: approx. 3.8 MT/day (at service speed).
Date Launched: June 2020 Length: 99.78m (327ft 4.35in) Beam: 20.78m (68ft 2.11in) Draft: 3.221m (10ft 7in) Location: China

Specifications

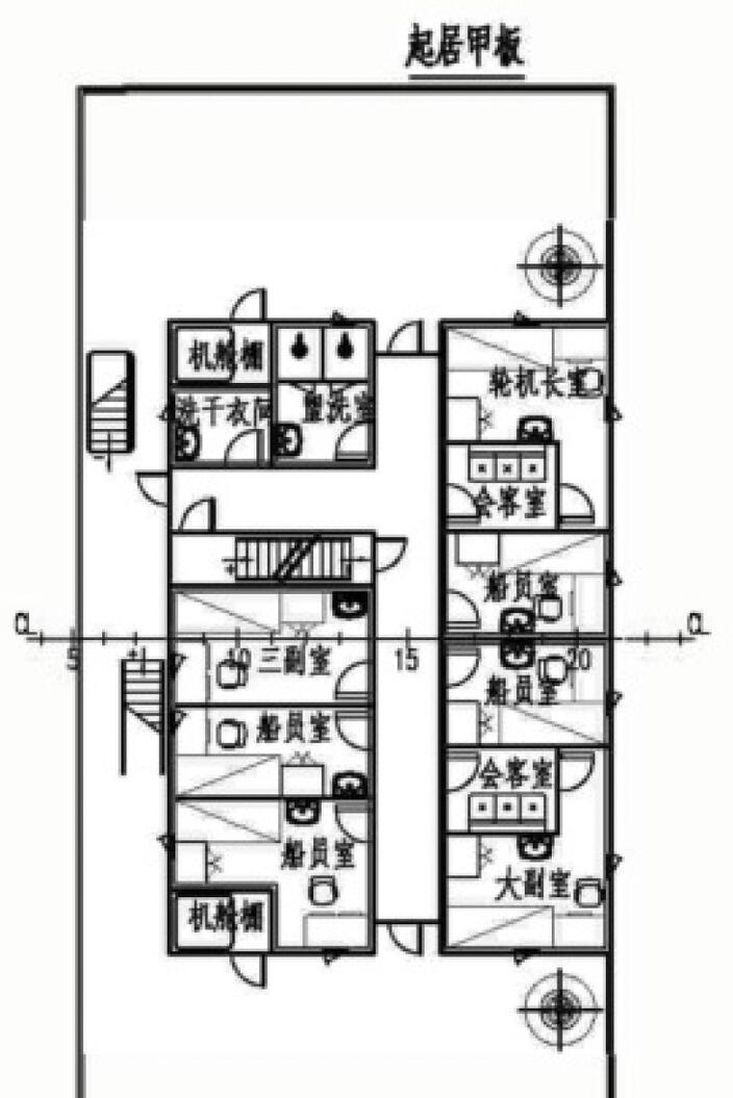

Accommodation

Crew Complement: 12 persons

Construction

Vessel Type: Self-Propelled LCT / Deck Cargo Vessel
Hull No.: CB69
Year Built: June 2020
Builder: China
Hull Material: Steel
Length Overall (LOA): 99.78 m
Length Waterline (LWL): 97.04 m
Length Between Perpendiculars (LPP): 93.60 m
Beam (Moulded): 20.78 m
Depth (Moulded): 5.65 m
Design Draft: 4.23 m
Light Draft: 3.221 m
Deadweight (DWT): approx. 5,150 MT
Maximum DWT (estimated): up to approx. 6,000 MT (subject to survey)
Gross Tonnage (GT): 2,995
Net Tonnage (NT): 1,677
Loaded Displacement: approx. 6,940 MT
Light Displacement: approx. 1,742 MT

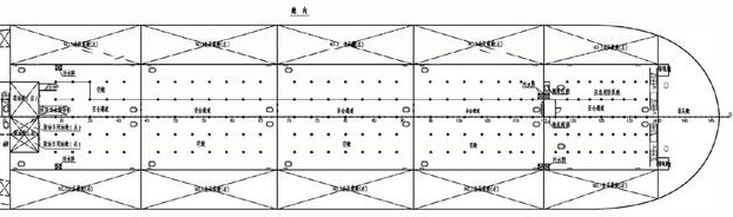

Deck Length: approx. 72.0 m
Deck Width: approx. 20.0 m
Deck Area: approx. 1,440 m²
Deck Loading: 5.0 t/m²
Cargo Suitability: Project cargo, deck cargo, vehicles, equipment, offshore materials
Design Service Speed: approx. 8.0 knots
Maximum Speed (light condition): approx. 11–12 knots
Fuel Consumption: approx. 3.8 MT/day (at service speed)

Modern LCT built in 2020
Large clear deck with high deck loading
Twin engine / twin propeller configuration
Suitable for coastal and regional deck cargo operations
Potential for flag and class change, subject to buyer’s requirements

Navigation Equipment

Radar
GPS
AIS
Gyro compass
Magnetic compass
Depth sounder
Standard navigation and signaling equipment as per CCS / China MSA

Engine(s)

Main Engines: 2 × CNPC JICHAI diesel engines
Power: 1,500 HP each
Total Power: 3,000 HP
Propulsion: Twin screw, fixed pitch propellers
Gearbox Reduction Ratio: 5.50 : 1

Electrics

Main Generator Sets: 2 × 187 kW @ 1,500 rpm
Harbor / Emergency Generator: 1 × 50 kW

Safety Equipment

Fully compliant lifesaving equipment
Fixed CO? fire extinguishing system
Fire pumps, hydrants, extinguishers as per class and statutory requirements

Certification

Class: CCS (China Classification Society – Domestic Coastal)
Trading Area: Sea / Coastal
Flag: China (subject to change)

Disclaimer

The particulars and specifications are supplied by the vendor and not SeaBoats. Such information has not been verified and may be incorrect. Please do not rely on particulars and specifications unless you have verified their accuracy.
