Brokerage boats for sale in China
Description
New-built 5000DWT Self-discharging Sand Carrier
Abt 5000 dwt
Blt 2019 CHINA
Class:CCS Coastal vessel
Dims: Loa 90m - Beam 16.8m - Depth 5.8m
Sand discharge:1200BHP
Belt wide:1.6meters
Conveyor belt frame:30.00meters
Main engine: 2xXCW6200ZC, 950 BHP,698KW@1000rpm
Gearbox:HCD1000 4.5：1
Copper propeller Composite rock wool board decoration
(All details given in good faith but wog)
Best offers invited. ... read more
| Year: | 2019 |
| Length: | 90m |
| Location: | China |
View Details | |
Two 1500CBM Split hooper barge for sale，built in 1993，located in china.
CCS Classification. Very well maintained.Hold full details can guide you accurately.
1500CBM SPLIT HOOPER BARGE ,2300 DWT
BUILT IN CHINA 04/01/1993 ZPMC,CHINA
LOA 66.7 BOA 14.7 DEPTH 4.8
Mud cabin width：11
Mud cabin length：31
Fuel capacity：52CBM FW capacity：52.6CBM
Mud tank open time（baalast）：4minutes ，laden will faster... read more
| Year: | 1993 |
| Length: | 66.70m |
| Location: | Zhejiang China |
View Details | |
1- Overall Length:48.90m
2- Beam/Draft & other dimensions: 8.50m/3.1m
3- GT: 488
4- Hull Material: Steel
5- Fishing Method: Stern Trawling
6- Fuel Tank: 167.66m3
7- F. Water Tank: 42.64m3
9- Main Engine:1x Dalian CSR 6240ZC 1000kw 1000rpm
10- Aux. Engine: 2xWeichai 350kw 1500rpm(2x300kw alternator)+1x60kw(1x50kw alternator)
11- Fish hold capacity: 322.73m3
13- Accommodation: 20 persons
14- Navigational Equipments: Japan Furuno Ocean Going appropriate Equipments.
15- All fishing electronic equipments.
16- All hydraulic winches, cranes & other fishing equipments.
17- Speed: 10 Knts... read more
| Length: | 48.90m |
| Location: | Zhejiang China |
View Details | |

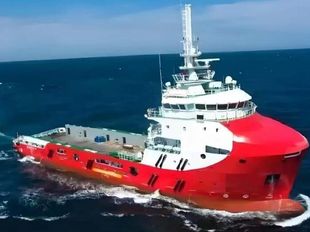

This vessel has just completed sea trials and can be available for delivery within 1.5 months. Very high spec fully imported components/ machinery.
Class notation: ABS +A1 (E) Offshore Support Vessel,(Supply - HNLS, AH, Tow, FFV 1) + AMS+ DPS-2 UWILD .SPS.
LOA 78mtrs. Powered by twin Wartsila 9L32 engines (4599kW@750rpm) with CPP, speed 14.5 knots. Bollard Pull 150t. 3 x 12t Kawasaki Thrusters. 2 x Cat C18 450ekW and 1 x Cat C32 850ekW generators. McGregor Plimsoll Power Packs and towing gear. Accom for 50.
Cargo deck area approx 520m2 and 1000t capacity.
The vessel may be inspected at the... read more
| Year: | 2020 |
| Length: | 78m |
| Location: | China |
View Details | |
Built in 2011 in local Chinese Classification ZC (non IACS), this Crane Barge is available ex China for prompt delivery.
LOA 102.3m x 36m. 4 point mooring system.
Max fixed lifting 1500t. Revolving 800t.
Accom capacity for 200 persons. Emergency propulsion.
Independent Marine Surveyors available in China for survey reports(quoted)
For a more detailed specification, please feel free to contact us.... read more
| Year: | 2011 |
| Length: | 102.3m |
| Location: | China |
View Details | |
Built in 2011 at a cost of $120m, this 3800t Crane Barge is now available for prompt delivery, ex China in current CCS Classification (IACS)
Rare to the marketplace, the barge measures 148m x 46m.
Main crane max testing limit of 3800t. Revolving 2800t.
Aux crane 40t.
Large accom module with 372 person capacity.
3 x 900kW main generators with 2 x 400kW aux and 1 x 100kW emergency.
Clear deck area of 35,000m2 with 20tm2 loading. Deck load capacity 4000t.
8 point mooring system.
For a more detailed specification, please feel free to contact us.... read more
| Year: | 2011 |
| Length: | 148.8m |
| Location: | China |
View Details | |
83m PILE DRIVING BARGE
Flag:Pending
Class:BV
Navigation area: Offshore
Delivery:14months
Principal Dimensions and Characteristics
Length of all:64.60m
Length of Hull:57.60m
Beam: 26.00m
Molded Depth: 5.00m
Molded Draft: 2.30m
Pile diameter:2500mm
Pile length:70.00m
Pile weight:80.00t
Pile holder height:85m
Pile range:-25degree to +25 degree
Lowest pile angle to water line:41.00m
Accommodation:20
F.W.Tank:242m3
Spare F.W.Tank:524m3
F.O.Tank:264m3
Bow ballast tank:756m3
Stern ballast tank:1262m3
Hydraulic Engine Characteristics
Rate power:1200kw
Rotation speed:75... read more
| Length: | 64.60m |
| Location: | Zhejiang China |
View Details | |
2000 ton LCT $280,000
Date of keel laid: August 01, 2009. Finished date: April 21, 2010. Rebuilt date: August 29, 2013. Deadweight: 2000 dwt. Accommodation: No. of crews: 8 P. Machineries: 2 x Zibo diesel engines, Model Z6170ZLC-1 Diesel engines. Rated power(kw): 220.... read more
| Year: | 2010 |
| Length: | 73.80m |
| Location: | China |
| Price: | $280,000 |
View Details | |
56m AHTS 4800 BHP $1,950,000
Navigation Area: Great Coastal Waters Operating Sea Area: A1 + A2. No. Of crews: 11 Persons. 2 x Diesel engine. 2 x Propeller shaft (S, P), CPP(controllable pitch propeller), Material Cu3.... read more
| Year: | 2012 |
| Length: | 56m |
| Location: | China |
| Price: | $1,950,000 |
View Details | |
This tug built 2012 is in current CCS Class, CSAD Tug, ICE CLASS B Offshore Navigation area, CSM. It is suited for a variety of purposes, Harbour, Towing, Pushing and Offshore Platform Service
LOA 36.6m x 10.5m. Powered by twin QingDao ZiChai BoYang 2400hp each (Sino-Japan Joint Venture Engines) with Imported Baoding Hongqi ASD drives.
Bollard pull of 60t. GT425t. Accommodation for 12, fully air conditioned.. External FIFI 600m3/hr. This may be upgraded to FIFI 1 if required.
Inspection available by appointment.... read more
| Year: | 2012 |
| Length: | 36.6m |
| Location: | China |
View Details | |
